Dynamic Bone Node

A Custom Maya Node for Dynamic Bone Simulation

DynamicBoneNode is a custom Maya dependency node designed to add lightweight, procedural secondary motion to character rigs.
It is commonly used for simulating dynamic behavior in elements such as hair strands, muscle attachments, soft accessories, and small props, where full physics simulation would be unnecessary or too expensive.

Key Features

Procedural Secondary Motion
Lightweight dynamic simulation with controllable stiffness, damping, and jiggle amount.
Aim-Based Orientation
Converts simulated point position into stable joint rotation using an aim-and-up solution.
Constraint & Collision Support
Distance and angle constraints with sphere and capsule collision handling.
DG-Safe & Deterministic
Time-aware evaluation designed for predictable playback and real-time prototyping.

Technical Breakdown

Jiggle Simulation
- At each evaluation step, the node computes a new dynamic position using a semi-implicit Euler update. The solver estimates velocity from the previous frame, applies a spring-damper force toward the target, and integrates it to compute the next position.
- This computation exposes two primary parameters for user control: Stiffness and Damping.
  - Stiffness (Spring Strength)
    Stiffness controls how aggressively the dynamic point is pulled back toward the target.
    Higher stiffness makes the motion feel tighter and more responsive (less lag), while lower stiffness produces looser follow-through.
  - Damping (Energy Loss)
    Damping reduces bouncing by removing energy from the system based on the current velocity. Higher damping settles quickly with fewer bounces, while lower damping preserves more overshoot and secondary vibration.

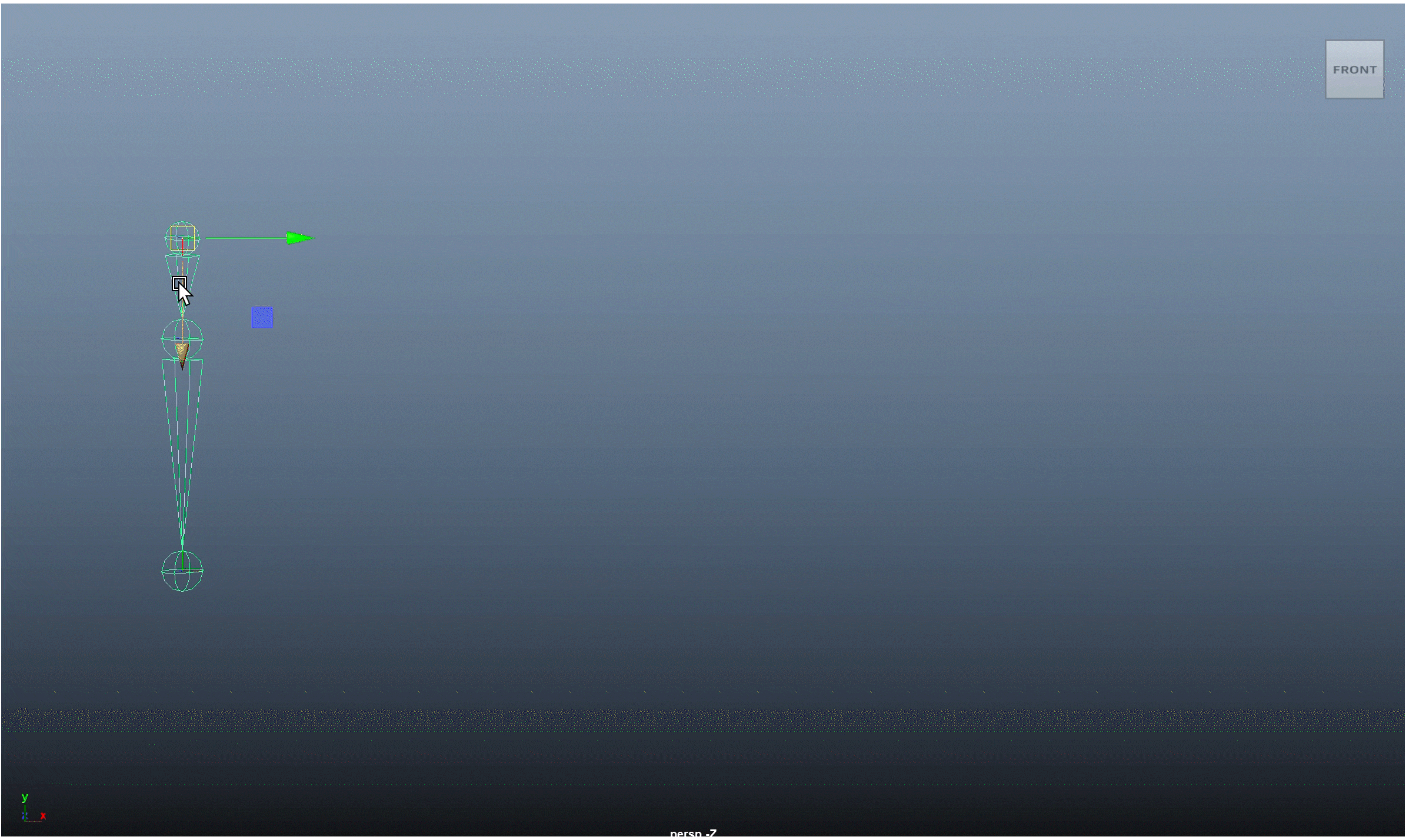

Stiffness: 0.2

Damping: 0.2

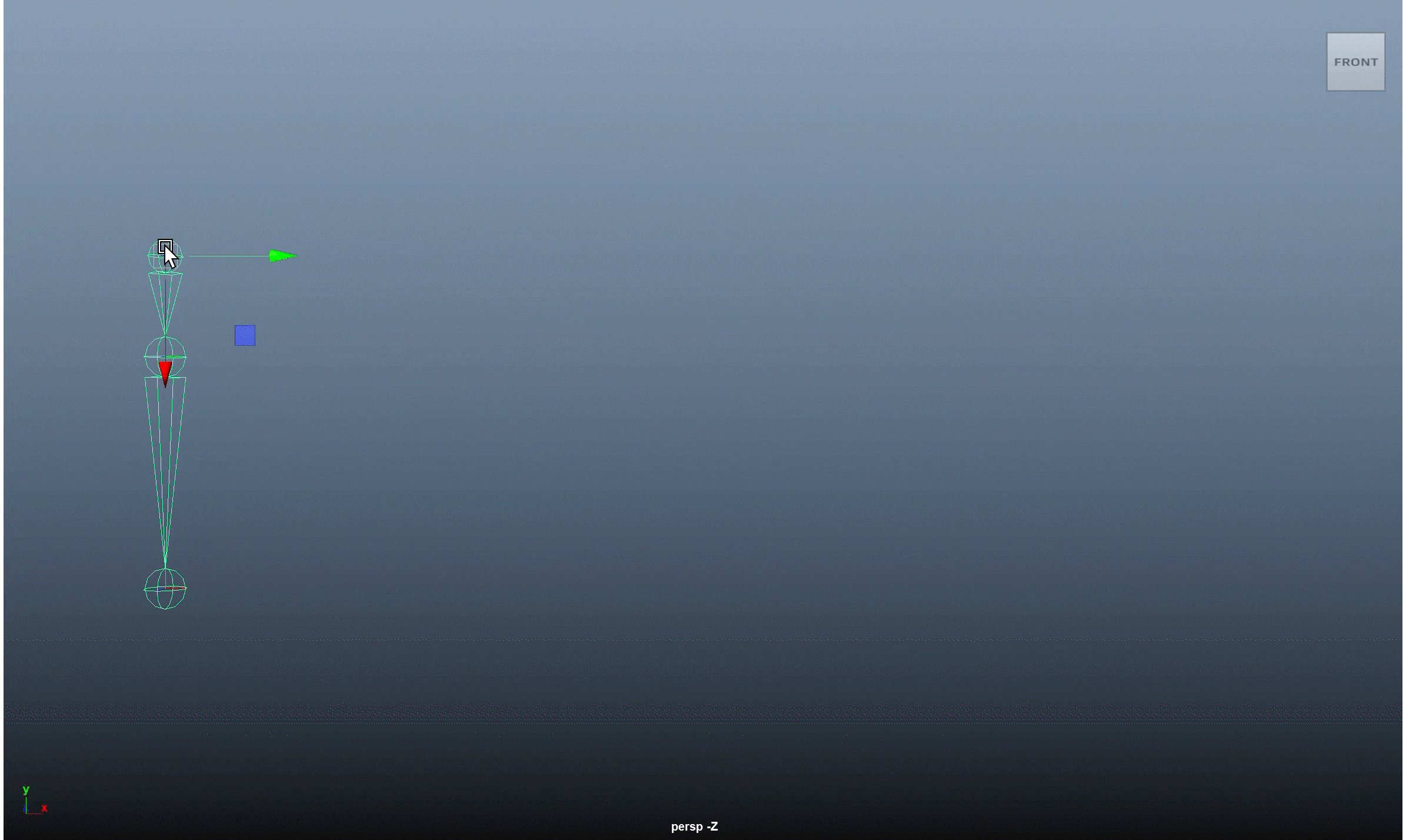

Stiffness: 0.02

Damping: 0.2

Stiffness: 0.2

Damping: 0.02

Angle and Distance Constraints
- Angle Constraint
  The angle constraint measures the deviation between the original pivot-to-target direction and the simulated direction. If the deviation exceeds the user-defined maximum angle, the vector is clamped by rotating it back around the computed axis using an axis–angle rotation based on Rodrigues’ rotation formula, limiting excessive jiggle and improving motion stability.
- Distance Constraint
  The distance constraint enforces a fixed bone length by constraining the simulated point to stay at a constant distance from the pivot.

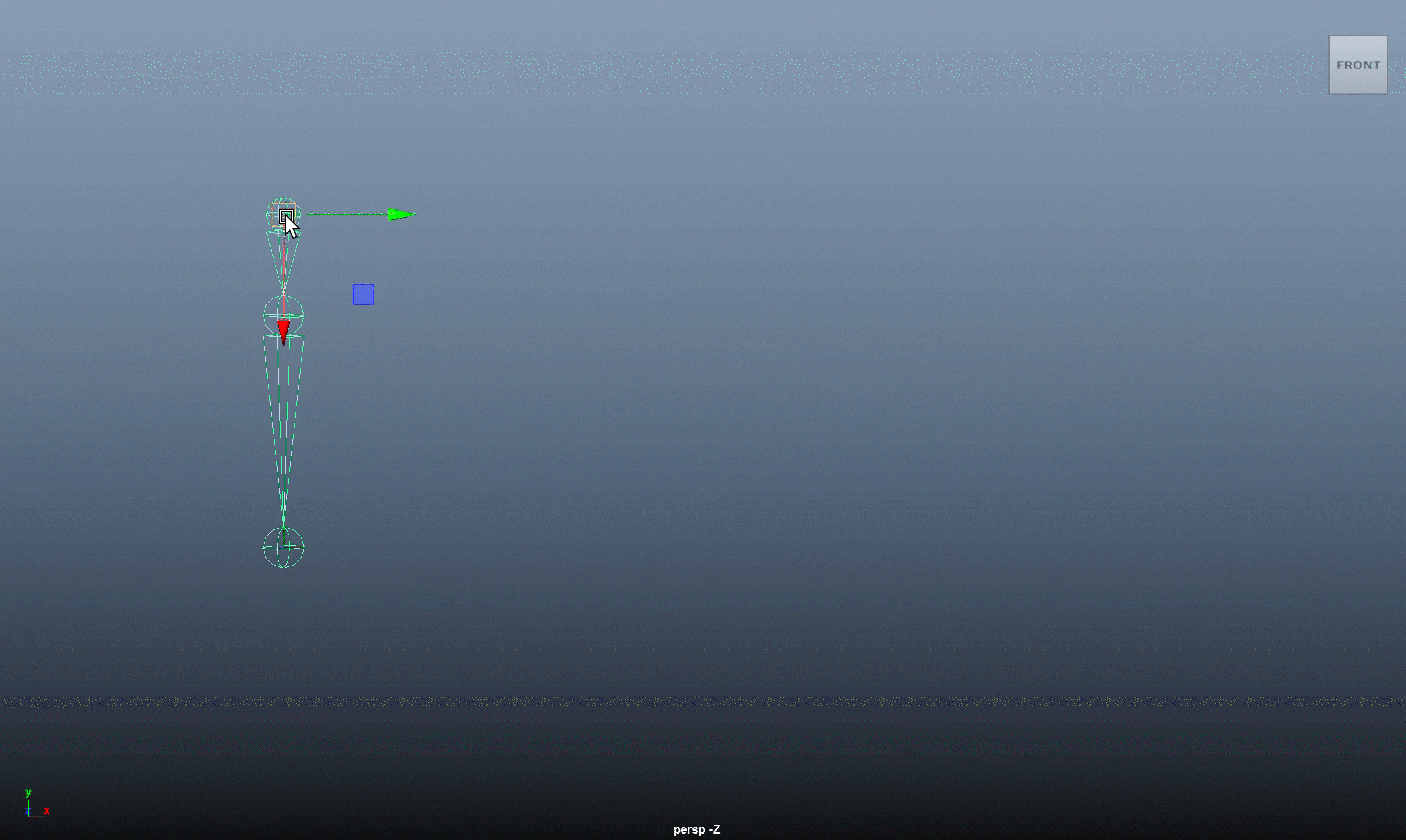

Max angle: 90 degrees

Max angle: 15 degrees

Collision Handling

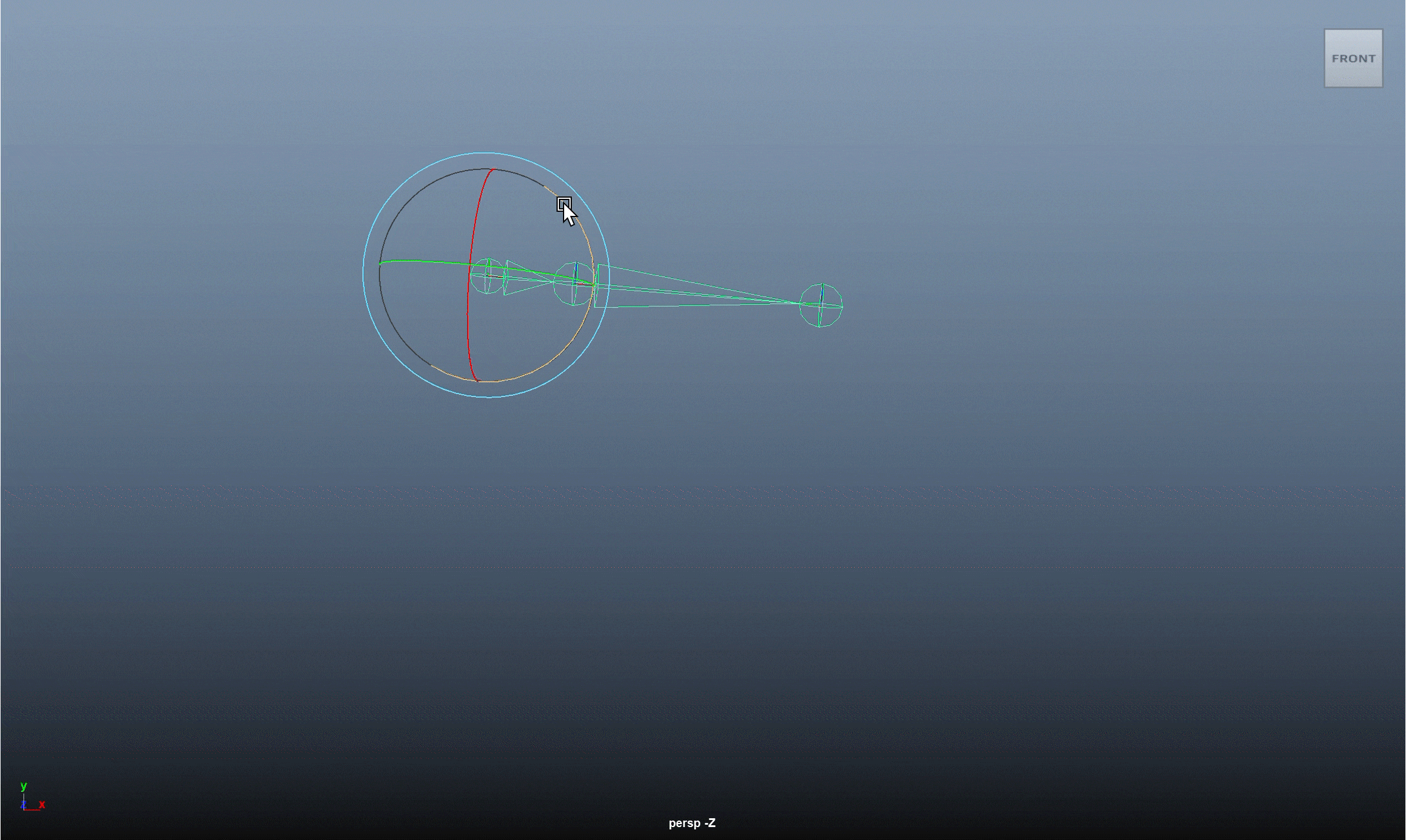

- DynamicBoneNode provides lightweight collision handling using two collider types: Sphere and Capsule colliders.
- At each simulation step, the dynamic point is tested against all active colliders, and any penetration is resolved by projecting the point back onto the collider surface.
- Multiple collision iterations improve stability and reduce tunneling, while bone radius is respected to maintain consistent spacing from surrounding geometry.

Aim-Based Orientation
- The node converts the resolved dynamic position into pivot joint rotation using a custom aim-and-up vector solution.
- The solver derives the aim direction from the pivot to the simulated position and uses the pivot joint’s local up axis as the up reference.
- Local axes closest and furthest from the aim direction are selected as the aim and up axes, forming a stable orthonormal frame that is aligned via a basis transformation and output as a quaternion.

Example Usage

Tianyi Lin

Dynamic Bone Node

A Custom Maya Node for Dynamic Bone Simulation

​

DynamicBoneNode is a custom Maya dependency node designed to add lightweight, procedural secondary motion to character rigs.

It is commonly used for simulating dynamic behavior in elements such as hair strands, muscle attachments, soft accessories, and small props, where full physics simulation would be unnecessary or too expensive.

Key Features

​​

Procedural Secondary Motion Lightweight dynamic simulation with controllable stiffness, damping, and jiggle amount.

Aim-Based Orientation Converts simulated point position into stable joint rotation using an aim-and-up solution.

Constraint & Collision Support Distance and angle constraints with sphere and capsule collision handling.

DG-Safe & Deterministic Time-aware evaluation designed for predictable playback and real-time prototyping.

​Technical Breakdown​​

Jiggle Simulation

At each evaluation step, the node computes a new dynamic position using a semi-implicit Euler update. The solver estimates velocity from the previous frame, applies a spring-damper force toward the target, and integrates it to compute the next position.

This computation exposes two primary parameters for user control: Stiffness and Damping. ​​

Stiffness (Spring Strength) Stiffness controls how aggressively the dynamic point is pulled back toward the target. Higher stiffness makes the motion feel tighter and more responsive (less lag), while lower stiffness produces looser follow-through.

Damping (Energy Loss) Damping reduces bouncing by removing energy from the system based on the current velocity. Higher damping settles quickly with fewer bounces, while lower damping preserves more overshoot and secondary vibration.​​

​​

Angle and Distance Constraints

Distance Constraint The distance constraint enforces a fixed bone length by constraining the simulated point to stay at a constant distance from the pivot.​​

​​

Collision Handling

DynamicBoneNode provides lightweight collision handling using two collider types: Sphere and Capsule colliders.

At each simulation step, the dynamic point is tested against all active colliders, and any penetration is resolved by projecting the point back onto the collider surface.

Multiple collision iterations improve stability and reduce tunneling, while bone radius is respected to maintain consistent spacing from surrounding geometry.​​

​​

Aim-Based Orientation

The node converts the resolved dynamic position into pivot joint rotation using a custom aim-and-up vector solution.

The solver derives the aim direction from the pivot to the simulated position and uses the pivot joint’s local up axis as the up reference.

Local axes closest and furthest from the aim direction are selected as the aim and up axes, forming a stable orthonormal frame that is aligned via a basis transformation and output as a quaternion.

Example Usage

Procedural Secondary Motion
Lightweight dynamic simulation with controllable stiffness, damping, and jiggle amount.

Aim-Based Orientation
Converts simulated point position into stable joint rotation using an aim-and-up solution.

Constraint & Collision Support
Distance and angle constraints with sphere and capsule collision handling.

DG-Safe & Deterministic
Time-aware evaluation designed for predictable playback and real-time prototyping.

Technical Breakdown

This computation exposes two primary parameters for user control: Stiffness and Damping.

Stiffness (Spring Strength)
Stiffness controls how aggressively the dynamic point is pulled back toward the target.
Higher stiffness makes the motion feel tighter and more responsive (less lag), while lower stiffness produces looser follow-through.

Damping (Energy Loss)
Damping reduces bouncing by removing energy from the system based on the current velocity. Higher damping settles quickly with fewer bounces, while lower damping preserves more overshoot and secondary vibration.

Distance Constraint
The distance constraint enforces a fixed bone length by constraining the simulated point to stay at a constant distance from the pivot.

Multiple collision iterations improve stability and reduce tunneling, while bone radius is respected to maintain consistent spacing from surrounding geometry.
